Triple Silver Low E Insulated Glass , Double Glazing Igu Hollow

Certification
China foshan nanhai ruixin glass co., ltd certification
China foshan nanhai ruixin glass co., ltd certification
I'm Online Chat Now

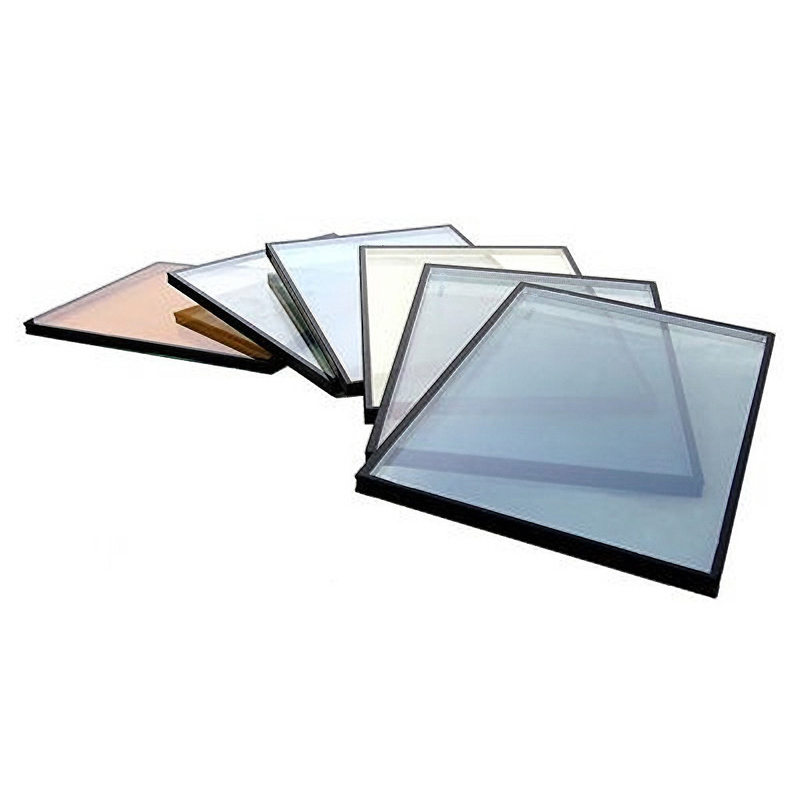

Triple Silver Low E Insulated Glass , Double Glazing Igu Hollow

Triple Silver Low E Insulated Glass , Double Glazing Igu Hollow
Triple Silver Low E Insulated Glass , Double Glazing Igu Hollow Triple Silver Low E Insulated Glass , Double Glazing Igu Hollow

Large Image :  Triple Silver Low E Insulated Glass , Double Glazing Igu Hollow

Product Details:
Place of Origin: GuangDong,China
Brand Name: OEM
Certification: SGCC, SAI,CE
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 10 sqms
Price: Negotiate
Packaging Details: Strong plywood crate
Delivery Time: 10-20 DAYS
Payment Terms: T/T
Supply Ability: 100000 /Square Meters per Month

Triple Silver Low E Insulated Glass , Double Glazing Igu Hollow

Description
Process Type: Edge Grinding Unction: Insulated Glass, Low-E Glass
Size: Customizable OEM / ODM: Yes
Application: Office Building Shape: Curve, Flat
High Light:

Triple Silver Low E Insulated Glass

,

Hollow Low E Insulated Glass

,

Insulated double glazed igu

Single Double Triple Silver Low-E Insulated Glass Double Glazing Insulating Glazed Units Hollow



Insulated Glass is made of two or more pieces of glass with effective support and evenly spaced and sealed at the periphery to form a dry gas space between the glass interlayers. The interlayer of the insulated glass is initially dry air, and other gases with a lower thermal conductivity than air are currently used. The minimum thickness of the gas interlayer of the insulating glass should not be less than 6mm, otherwise it will not function as thermal insulation. However, the thickness should not be too large, if it is too large to make the insulated glass too thick. In order to standardize the production of the frame, the gaps of the insulated glass are currently divided into 6, 9, and 12, 14, and 16 mm.





Any type of insulated glass consists of the following components:

(1) The float glass constitute the insulated glass. These glasses can be ordinary laminated glass, solar control glass (including Low-E glass), and etc.


(2) Gas interlayers and gases. In the interlayer of the insulated glass, firstly to ensure the performance of the insulated glass, the interlayer gas must be dry, including dry air, argon or other special gases. Generally, depending on the requirements, the thickness of the insulated glass interlayer and the internal gas are also different.



PRODUCT INFORMATION:



Product Name
Insulated Glass
Spacer Thickness
6mm, 9mm, 12mm, 16mm, 19mm(1/4'',11/32'',1/2'',9/16'',19/32'',5/8'')etc.
Glass Option
Clear Glass, Low Iron Glass, Tinted Glass, Ceramic Fritted Glass
Low-E Option
Single silver, Double silver, Triple silver
Gas Filling
Dry air, Argon
Size
Max. Size: 12000*3300mm/Min.Size:300*300mm



The unique structure of the insulated glass and the heat insulating effect of the hollow space layer effectively reduce the heat transfer coefficient and have excellent energy saving characteristics. Therefore, to extend the life of the insulated glass and improve the energy saving effect, China insulated glass manufacturers must ensure the high quality of the product, and also the insulated glass suppliers must provide the high-quality materials. Thus the insulated glass price will be different for the improvement of high-quality requirements.



 Packaging Details



Customized export strong plywood crate packaging, use protective paper film and soft wood pad for seprate glass avoid breaking. High safety for upload, unload, and transportation.



Triple Silver Low E Insulated Glass , Double Glazing Igu Hollow 0Triple Silver Low E Insulated Glass , Double Glazing Igu Hollow 1
