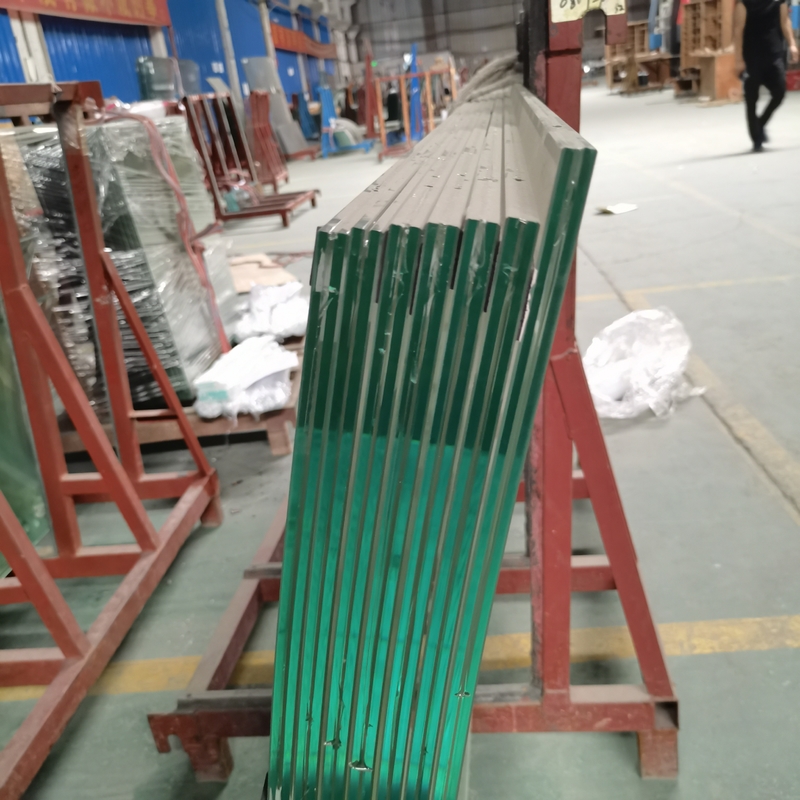

Curved Surface Safety Laminated Tempered Glass For Window And Door

Certification
China foshan nanhai ruixin glass co., ltd certification
China foshan nanhai ruixin glass co., ltd certification
I'm Online Chat Now

Curved Surface Safety Laminated Tempered Glass For Window And Door

Curved Surface Safety Laminated Tempered Glass For Window And Door
Curved Surface Safety Laminated Tempered Glass For Window And Door Curved Surface Safety Laminated Tempered Glass For Window And Door Curved Surface Safety Laminated Tempered Glass For Window And Door

Large Image :  Curved Surface Safety Laminated Tempered Glass For Window And Door

Product Details:
Place of Origin: Foshan,China
Brand Name: NO
Certification: SGCC, SAI,CE
Model Number: Laminated Glass
Payment & Shipping Terms:
Minimum Order Quantity: 10Pieces
Price: USD10.32-20.64
Packaging Details: wood crate
Delivery Time: 10-15 days
Payment Terms: T/T
Supply Ability: 10 Twenty-Foot Container per Week

Curved Surface Safety Laminated Tempered Glass For Window And Door

Description
Function: Decorative Glass Processing: Edgeworks, Drill Holes, Cutouts, Safety Corner
Name: Laminated Glass Application: Curtain Wall,door,stairs, Handrails, Skylights And Arcade Roof
Type: Float Tempered Glass Color: Clear, Tinted And Reflective Glass
High Light:

Curved Surface Laminated Tempered Glass

,

Safety Laminated Tempered Glass



Laminated Tempered Glass For Window And Door



Curved Tempered Laminated Glass is the curved surface safety glass, processed by heating float glass to fit certain arc and radius and then make it cooling down quickly to reach the surface turned curved and the facial intensity increase 3~5 times stronger than common glass. And then put tow pieces of curved tempered glass bond together with advanced technology. In the event of breakage, the glass fragments remain bonded to the plastic interlayer.



Features of Toughened Laminated Glass

1. Extremely high safety: The PVB laminated glass withstands penetration from impact. Even if the glass cracks, splinters will adhere to the interlayer and not scatter.
2. Energy-saving building materials: PVB Laminated glass impedes the transmission of solar heat and reduces cooling loads.
3. Curved glass is flexibility and elegant, the flow of this building material provide unprecedented level of creativity in the design of a structure. Toughened curved glass is a highly adaptable material to give architects the freedom to explore more organic and fluid concepts.
4. Sound control: PVB Interlayer film is an effective absorb of sound.
5. Tempered laminated galas widely used in modern construction, such as window, door, balustrade, shower room, partition, floor, roof, curtain wall, greenhouse etc.

Process Services
our customize and process service, we welcome to customize you size, color, shape etc, flat and curved shape are all available. The max size we can produce is 3300mmx12000mm, minimum radius we can do is 400mm and maximum arc length is 5000mm. Process service such as edgeworks, drill hole, safety corner ect process can customize according customers
requirement.


After-sale Service
Online technical support
Project Solution Capability
Others, graphic design
Application
Supermarket, School, Bathroom, Home Office, Office Building, Apartment, Sports Venues, Hospital, Hotel
Usage
Industrial
Thickness
5-19mm
Item Name
Laminated glass
Interlayer type
PVB/SGP
Interlayer thickness
0.38mm, 0.76mm, 1.14mm, 1.52mm, 1.90mm, 2.28mm
Shape
Flat, curved, irregular
Processing
Cutting, drilling, polishing, cutouts, safety corners etc.
Glass color
Clear, ultra clear, brown, bronze, blue, green, grey, etc.
Pattern
Dot pattern, line pattern, and any other customized patterns
Drilling
Normal holes or counterbore (according to customer's requirements)
Advantage
No fade, anti-scratch, waterproof, environmental protection
Application
Skylight, roof, walking floor glass, bridge, partition etc.



We have very strong production capacity and very strict product quality control system to establish long term business relationship with our customers! We will supply high-quality glass products & competitive price and good service to you and wish you can give us a chance to cooperate. Please don't hesitate to contact with us if you have any inquiries about glass, we won't let you disappointed about us!!
