Solar Patterned Tempered Glass Low Iron AG Tempered Glass

Solar Patterned Tempered Glass Low Iron AG Tempered Glass
Solar Patterned Tempered Glass Low Iron AG Tempered Glass Solar Patterned Tempered Glass Low Iron AG Tempered Glass Solar Patterned Tempered Glass Low Iron AG Tempered Glass Solar Patterned Tempered Glass Low Iron AG Tempered Glass

Large Image :  Solar Patterned Tempered Glass Low Iron AG Tempered Glass

Product Details:
Place of Origin: Foshan, China
Brand Name: OEM
Certification: SGCC, SAI, CE, CCC
Model Number: Nashiji
Payment & Shipping Terms:
Minimum Order Quantity: 10sqm
Price: USD11-30
Packaging Details: Wood Crate
Delivery Time: 10-15 days
Payment Terms: T/T
Supply Ability: 300000SQM per month

Solar Patterned Tempered Glass Low Iron AG Tempered Glass

Description
Applications: Solar Panel,Solar Water Heater Structure: Solid
Customized: Customized Usage: Furniture, Door, Building, Window
Edge Work: Just Cutting, C-Edge, Flat Edge, Polished Edge Color: Low Iron / Clear/ultra Clear
High Light:

Solar Patterned Tempered Glass

,

Low Iron AG Tempered Glass



Solar Low Iron Patterned Glass/AR Coated Tempered Glass





3mm-8mm Clear Figured Patterned Glass with Nashiji, Karatachi, Mistlite, Millennium, Morgon, Flora Optional



Description:

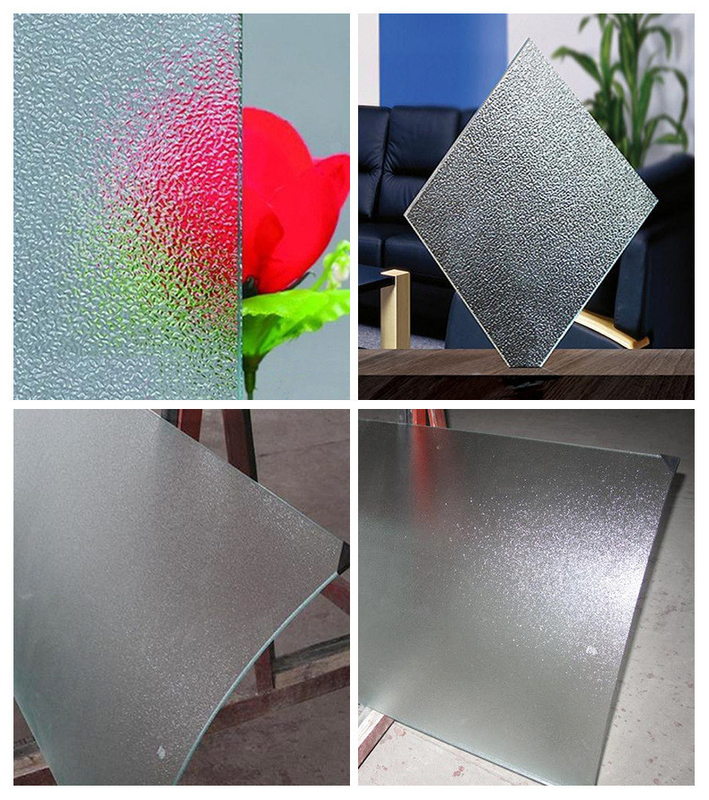

    patterned glass is also called Figured glass or obscure glass. Which is made in a similar way to float glass or is typically a type of rolled glass that has a pattern embedded into the surface of the glass by the roller, and the pattern is pressed onto one surface of the glass to give the design impression. Different patterns are made by changing one of the rollers. They can be used for decoration or Shower Room.



Description

Ultra white 3.2mm &4mm solar panel glass , are specially designed for encapsulation material of solar modules. The design reduces the direction reflectance and increase the internal reflection that the solar energy can be absorbed effectively. It ensures the maximum transmittance of the soar and raise the efficiency of electricity generation. The glass observes the properties of high solar transmittance, low absorbance, low reflectance, superior physical strength and significant flatness, is the ideal encapsulation material for solar thermal and photovoltaic modules.



Specification

Type ultra white 3.2mm&4mm solar glass
Thickness 3.2mm,4mm
Size Min size 450*150mm, Max size 2200*1250mm,
Further Process cleaning, cutting, rough grinding, hole, etc.
Surface Mistlite single pattern or ultra clear
Visible light Transmittance 91.60%
Visible light reflectance 7.30%
Solar Transmittance 92%
Solar reflectance 7.40%
UV transmittance 86.80%
Total solar heat gain coefficient 92.20%
Shading Coefficient 1.04% Performance varied due to different thickness
Usage It is widely used as solar power generator, water heater .



The company has a professional technical department and after-sales service department, the product enjoys a high reputation in the domestic market and enjoys a good reputation in the international market.

Our mission is to serve the global art glass manufacturing, make people's lives more secure.
